large diameter pipe production line

Name: large diameter pipe production line
Brand: YONGLI
Price: 1 USD

China large diameter pipe production line factory

Place of Origin : jiangsu china

Brand Name : YONGLI

Certification : CE and ISO9001

Model Number : ACM-16-1600mm

Weight : 5000KG

Screw Design : Single-screw

style : PE water supply pipe production line

Voltage : 380v or customized

MOQ : 1 Set/Sets

Price : US $ 5,0000 - 12,0000 / Set

Packaging Details : wooden case for glazed tile roll forming machine PP film for glazed tile roll forming machine

Delivery Time : 60days for glazed tile roll forming machine

Payment Terms : L/C,T/T

Supply Ability : 100 Set/Sets per Month glazed tile roll forming machine

Port : shanghai/ningbo

Contact Now

Specifications

PE water supply pipe production line
1. Pipe diameter: 16-1600mm
2. Pipe useful: water and gas supply

PE water supply pipe production line

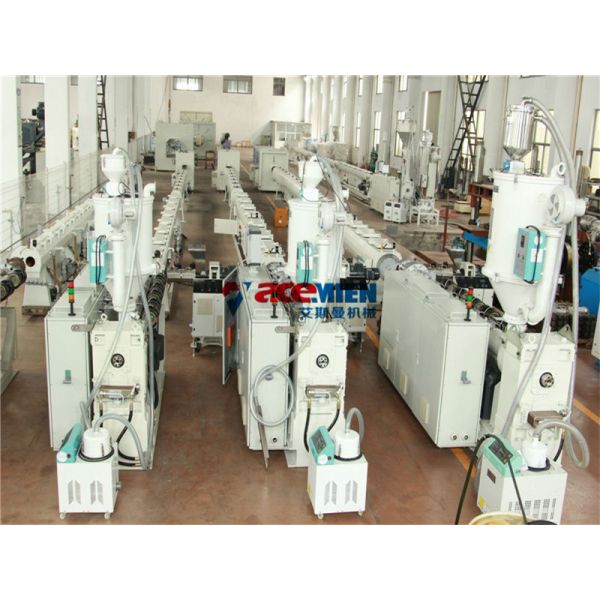

large diameter pipe production line

Process flow for pe pipe production machine

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → stacker

Characteristics for pe pipe production machine

Capacity: single screw extruder, suitable to process PE resin with high capacity, max 1000kg/h.Diameter: from 16 to 800mm
Adopts reasonable design, absorbing safe producing technology, acquiring CE certificate

Description for pe pipe production machine

This pe pipe extrusion line can be used in HDPE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb, Large diameter HDPE pipes start to play very important role in the city water and gas supply systems

large diameter pipe production line

Main technical specification:

Model

Pipe spec(mm)

Extruder

Max. output(kg/h)

Total power(kw)

PE63

φ20-63

SJ65/33

SJ25/25

120~150

110

PE110

φ20-110

SJ65/33

SJ25/25

120~150

110

PE160

φ63-160

SJ75/33

SJ25/25

300~350

190

PE250

φ75-250

SJ75/33

SJ25/25

300~350

200

PE315

φ110-315

SJ75/33

SJ25/25

300~350

230

PE450

φ160-450

SJ90/33

SJ25/25

500~700

320

PE630

φ315-630

SJ120/33

SJ25/25

700~900

540

PE800

φ400-800

SJ150/33

SJ25/25

900~1200

650

PE1000
